Sipeed NanoKVM-Pro 4K IP-KVM Remote Control Operations Maintenance Server, 1GB LPDDR4x RAM 32G eMMC, Dual System Switch Gbe Ethernet, 4K HDMI Video Loopout Capturer (ATX,ETH & WiFi & PoE,no LED)
4.0 (102 items)
Limited Time SaleUntil the end
15
30
43
US$64.79 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$43.20
Product details
| Management number | 209088239 | Release Date | 2026/03/29 | List Price | US$43.20 | Model Number | 209088239 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Remote Control O&M Server] Sipeed NanoKVM Pro IP-KVM Mini Remote Control O&M Server is an IP-KVM product based on AX631 2xA53 1.5G CPU Linux Single Board Computer, provides robust computational support for remote desktop connections. It supports MJPEG/H264(WIP)/H265 video encoding, 4K 45fps/2K 95fps/1080P 60fps resolution, 60~100ms video latency, 1000M/100M/10M Gbe Gigabit Ethernet port on board, Size: 65x65x26mm.
- [4K HMDI Video Capture & Loopout] Sipeed NanoKVM Pro IP-KVM remote maintenance server employs an AX630 CPU as its core controller, featuring built-in HDMI loop-out and capture chips. It delivers up to 4K60FPS HDMI loop-out and 4K video encoding at 45FPS capture. Leveraging the AX630 CPU's efficient and powerful graphics processing architecture, NanoKVM-Pro delivers ultra-low latency for high-resolution video transmission, with typical latency as low as 60ms at 2K resolution.

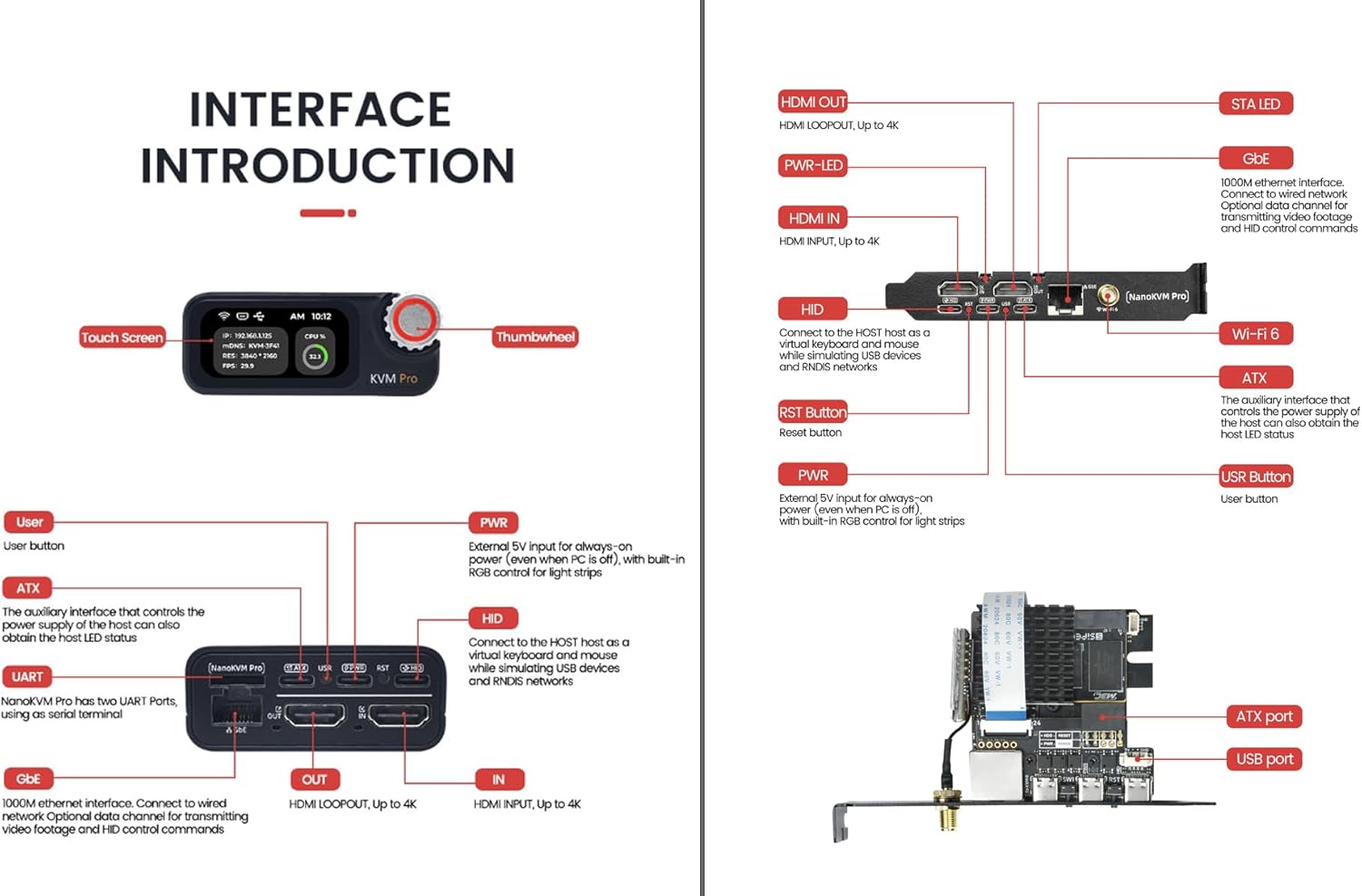

- [Support Gbe Gigabit Ethernet] Sipeed NanoKVM Pro IP-KVM Linux Development Board comes standard with a 1000M Ethernet port for network transmission of video, control signals, etc. The NanoKVM Pro Linux Development Board comes with a 1000M Ethernet port as standard. In addition, the Full version also comes with an ATX power control port (USB-C form factor) for remote control and host switching status, and an OLED display underneath the Full version's casing for displaying local IP and KVM-related status.
- [Server Management Support] Sipeed NanoKVM-Pro IP-KVM Maintenance Server can be used to monitor servers in real time, get the running status of servers and control them. Support remote desktop, switching machine: NanoKVM gets rid of the limitations that the host computer must be connected to the Internet and the system software, and can be used as the external hardware of the host computer to provide the function of remote control directly.
- [Support Remote Mounting] Sipeed NanoKVM Pro IP-KVM Remote Control Server as a hardware extension for remote desktop solutions. It captures HDMI video, synchronizes visuals and keyboard/mouse operations over the network in real-time, and emulates input to control the host computer. This approach requires no host software, being entirely hardware driven. NanoKVM Pro enables BIOS-level control of the host. This proves particularly valuable in scenarios like remote power cycling, multi-system switching, BIOS configuration, and remote system deployment.
- [Meet the Different Needs of Users] Sipeed NanoKVM Pro IP KVM remote control server currently provides two versions: NanoKVM-Desk is the desktop version of NanoKVM Pro. Its main body features a matte metal casing, with a 1.47-inch touchscreen on the front panel displaying KVM core information. This screen allows for convenient hardware function setup or serves as a mini secondary display. NanoKVM-ATX is the chassis-integrated version of NanoKVM Pro. Its built-in USB cables and power control interfaces simplify installation for host users. Remote control is achieved by connecting external HDMI, Ethernet, and USB cables.
- [Wiki] Getting Start:"wiki.sipeed.com/hardware/en/kvm/NanoKVM_Pro/introduction.html". Datesheet SDK Document download please click "WayPonDEV" store and ask the question. All after-sales questions, please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
| Brand | WayPonDEV |
|---|---|
| Color | ATX |
| RAM Type | DDR4 SDRAM |
| Model Name | NanoKVM Pro 4K IP-KVM Remote Control O&M Server |
| Model Year | 2025 |
| Resolution | 4K |
| Style Name | 1GB LPDDR4x RAM 32G eMMC |
| Item Weight | 105 Grams |
| Screen Size | 1.47 Inches |
| Aspect Ratio | 16:9 |
| Display Type | OLED |
| Manufacturer | WayPonDEV |
| Model Number | NanoKVM Pro 4K IP-KVM Remote Server |
| Video Output | HDMI |
| BuiltIn Media | Show as picture |
| Item Dimensions | 2.56 x 2.56 x 1.02 inches |
| Keyboard Layout | QWERTY |
| Power Plug Type | Type C |
| Processor Brand | ARM |
| Processor Count | 4 |
| Processor Speed | 1.5 GHz |
| Total Usb Ports | 2 |
| CPU Model Number | AX631 2xA53 1.5GHz CPU |
| Operating System | Linux |
| Processor Series | Cortex |
| Processor Socket | Socket A |
| Graphics Card Ram | 1 GB |
| Graphics Ram Type | DDR4 SDRAM |
| Native Resolution | 3840 x 2160 |
| Compatible Devices | Desktop Computer, Keyboard, Monitor, Mouse, Personal Computer |
| Hardware Interface | HDMI, USB |
| Additional Features | 4K/2K HDMI Video Capturer, Remote Control O&M Server |
| Hard Disk Interface | Ethernet 10/100/1000 |
| Graphics Coprocessor | AX631 |
| Graphics Description | Integrated |
| HumanInterface Input | Keyboard, Keypad, Mouse |
| RAM Memory Installed | 1 GB |
| Warranty Description | WayPonDEV Return Policy: You may return any new computer purchased from WayPonDEV that is "dead on arrival", arrives damaged, or is still in unopened boxes for the refund within 30 days of purchase. WayPonDEV reserves the right to return " Dead on Arrival" and charge a customer fee equal to 15 percent of the product retail price if the customer misrepresents the condition of the product. For any returned computer that is damaged due to customer misuse, is missing parts, or is in an unsellable condition due to customer intervention, the customer will be charged a higher restocking fee based on the condition of the product. WayPonDEV will not accept returns of desktop or notebook computers more than 30 days after receipt of the shipment. New, used, and refurbished products purchased from Marketplace Vendors are subject to each Vendor's return policy. |
| RAM Memory Technology | LDDR4X |
| Video Output Interface | HDMI, USB |
| CPU Model Speed Maximum | 1.5 GHz |
| Connectivity Technology | Ethernet, HDMI, LAN, USB, Wi-Fi |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 32 GB |
| Ram Memory Maximum Size | 1 GB |
| Specific Uses For Product | Everyday Use, Remote Control, Video Editing |
| Display Resolution Maximum | 3840x2160 Pixels |
| Total Number of HDMI Ports | 2 |
| Number of Component Outputs | 2 |
| Personal Computer Design Type | Mini PC |
