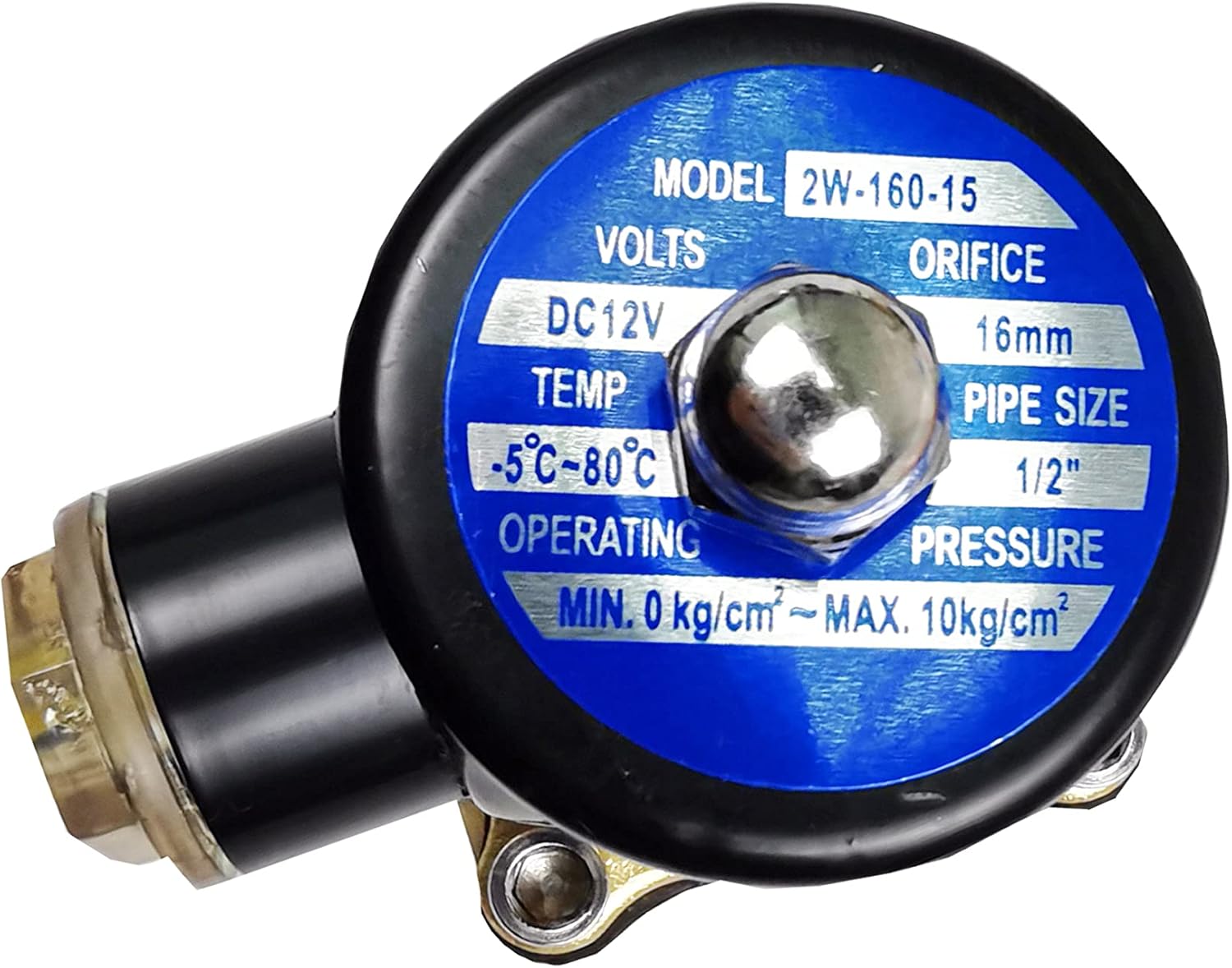

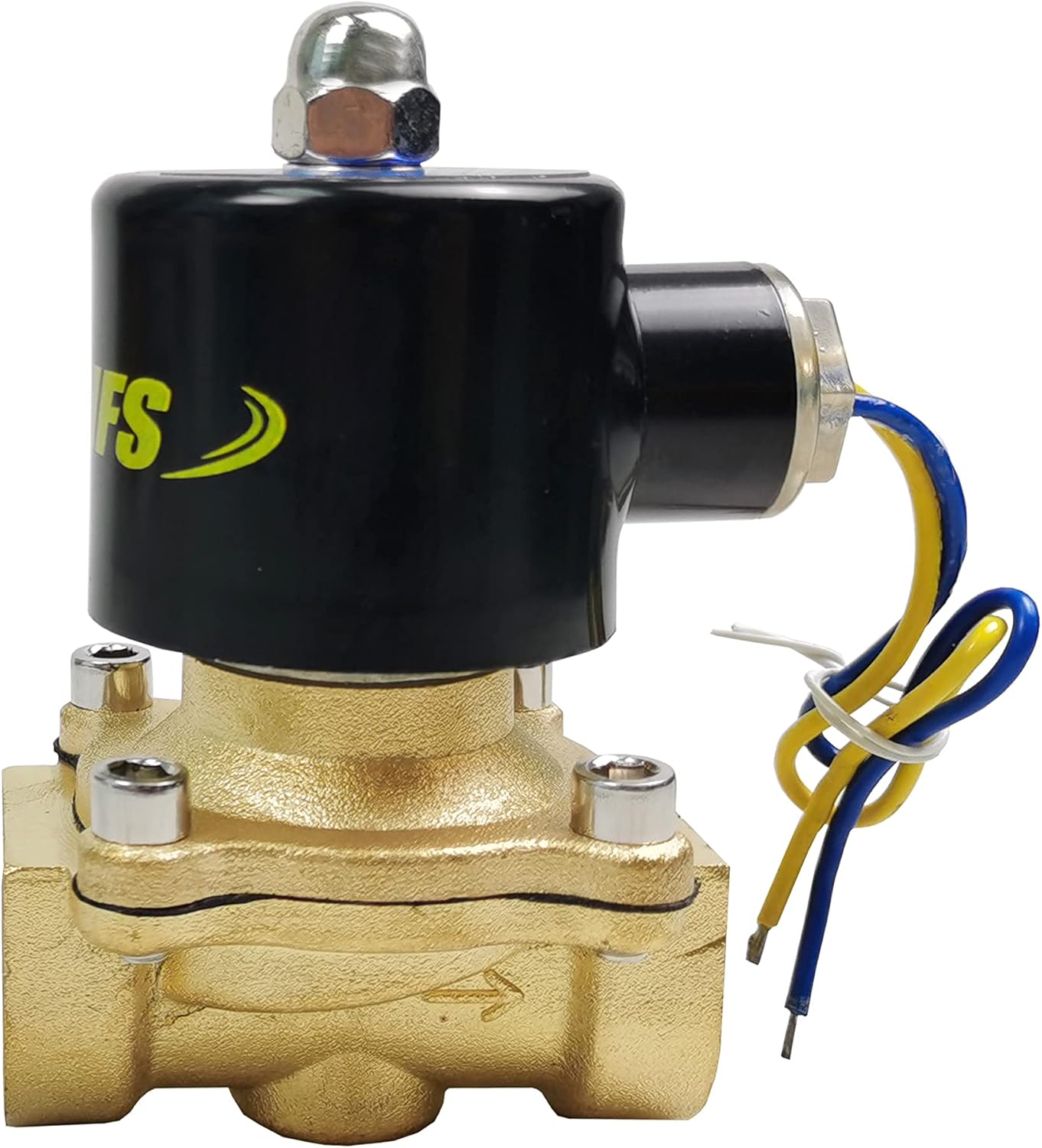

HFS(R) Electric Solenoid Valve Copper Normally Closed for Water Air Gas (12V DC 1/2IN NPT)
4.8 (133 items)
Limited Time SaleUS$14.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218226132 | Release Date | 2026/05/03 | List Price | US$10.00 | Model Number | 218226132 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [MATERIAL]: The product is mainly made of cast copper with copper coil, which improves the strength and applicability of the valve
- [SIZE]: 102mm*62mm (4.016 '' * 2.44 ''), thread diameter: 20mm (0.787 ''), interface pipe diameter: 1/2 '' NPT thread, flow diameter: 16mm (0.63 '')
- [N/C]: The solenoid valve is normally closed, which means it is closed when the power is not supplied, which effectively ensures the safety of use.
- [WIDE APPLICATION]: Applicable temperature: - 5 ℃ ~ 80 ℃,Working pressure: water, air: 0 ~ 7kgf/cm2. Working environment: water, air, compressed air and some stable gases.
- [MATTERS NEEDING ATTENTION]: Amps power required by adaptor: at least 2A. As the product is normally closed solenoid valve, the working time shall not be too long, and the working time is recommended to be less than half an hour. If more than half an hour will begin to appear heating state, after the solenoid valve heating, try to let it rest for half an hour before working.
| UPC | 789398118053 |
|---|---|
| Size | 12V DC 1/2IN NPT |
| Brand Name | HFS |
| Unit Count | 1.0 Count |
| Valve Type | solenoid valve |
| Item Weight | 1.46 Pounds |
| Thread Size | 1/2 inch |
| Manufacturer | HFS |
| Model Number | SLV-12-02 |
| Material Type | Copper |
| Connector Type | Threaded |
| Item Type Name | Solenoid Valve |
| Exterior Finish | Copper |
| Item Dimensions | 4.02 x 2.44 x 2.17 inches |
| Number of Ports | 1 |
| Maximum Pressure | 116 Pound per Square Inch |
| Specification Met | ANSI B16.11, ASME B16.34, ASTM, MSS SP 80, RoHS, UL |
| Included Components | Solenoid Valve |
| Inlet Connection Size | 1/2 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.5 Inches |
| Manufacturer Part Number | SLV-12-series |
